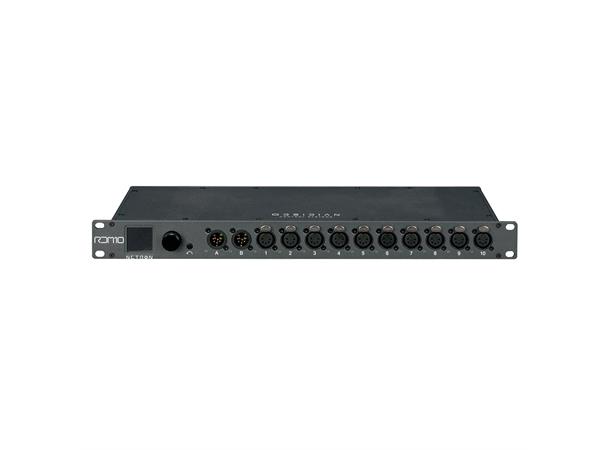

Netron RDM10 Dual input RDM splitter Netron RDM10 Dual input RDM splitter

Netron RDM10

Dual input RDM splitter

Varenr: 1330000063
12 199,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
ikke på lager (13 dager)
BeskrivelseTeknisk infoAlternativerSupport
Beskrivelse

The Netron RDM 10 is a universal dual input RDM splitter with an advanced feature set to cover a wide variety of applications. Its combination of a high density ten-port AB splitter with a two port EtherDMX node, DMX cue recording plus contact closures for preset and cue recall make this a truly universal tool for installations and production environments.

"
FEATURES
10 assignable DMX outputs
Integrated 2 Universe Artnet/sACN node
Configurable DMX refresh rate
Dual DMX Inputs for backup and signal loss options
Remote configuration via internal webpage
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing

CONNECTIONS
(2) Locking 5pin DMX Input
(10) Locking 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

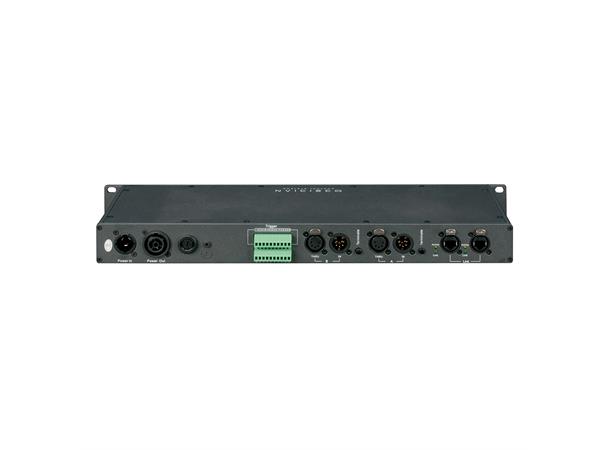

(2) Locking 5pin DMX Input (parallel with front)
(2) Locking 5pin DMX Through
(2) Locking RJ45 Ethernet Connector network In
(10) Contact Closures (Terminal Block)
Locking IP65 Power Connector In/Out

SIZE / WEIGHT
Length: 19.0” (482mm)
Width: 6.3” (160mm)
Vertical Height: 1.7” (44mm)
Weight: 3.4 lbs. (1.5kg)

ELECTRICAL
AC 100-240V - 50/60Hz
7W Max Power Consumption

INCLUDED ITEMS
Locking IP65 Power Connector to CEE 7/7 Cable

"
