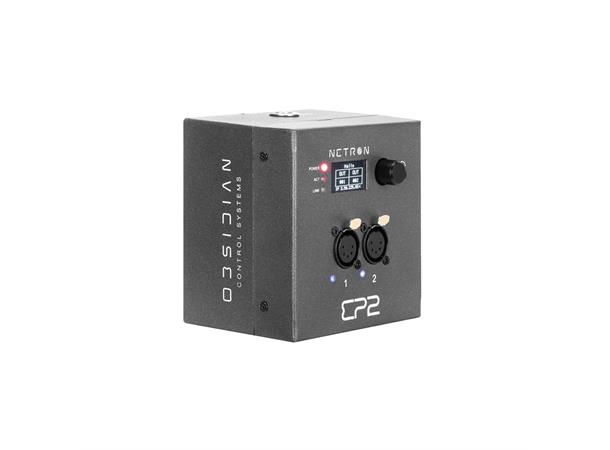

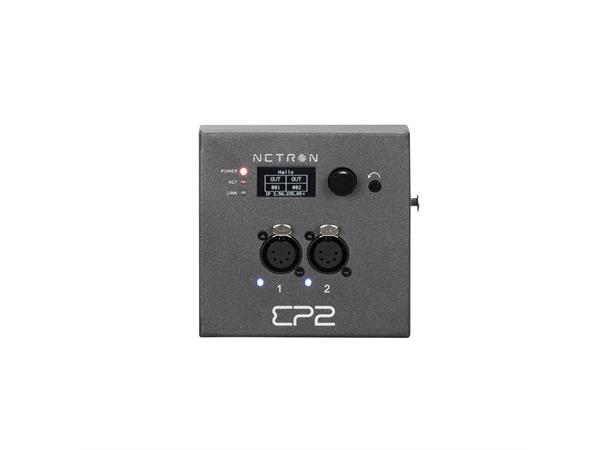

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.

TECHNICAL DATA

FEATURES

RDM, ArtNet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
1.3” OLED Display with rotary knob
Remote configuration via internal webpage
Powder-coated compact metal housing
Connect to ONYX PC for a full four Universe Solution

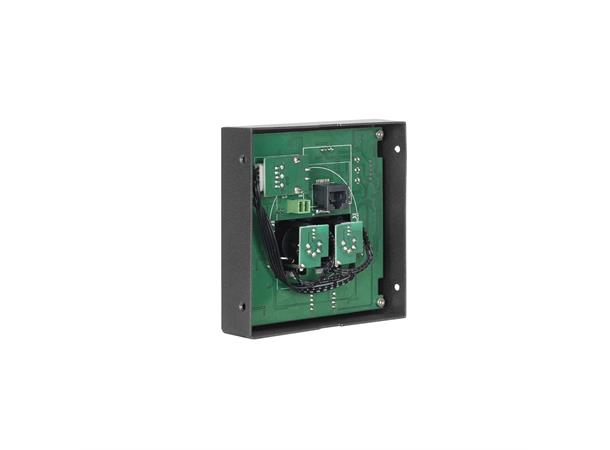

In-wall, On-Wall, Truss and Standalone mounting
Unlocks ONYX NOVA 4-Universe License

MOUNTING

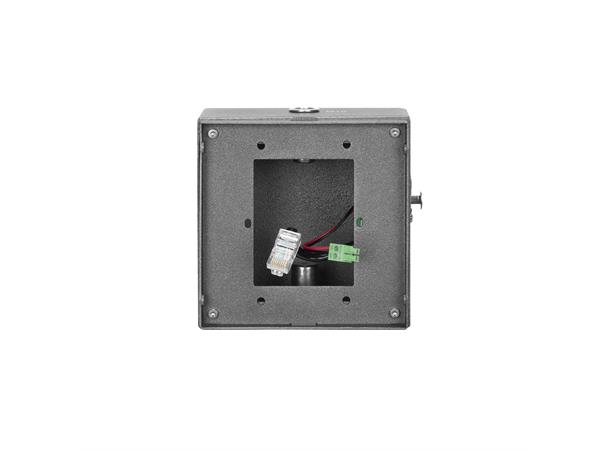

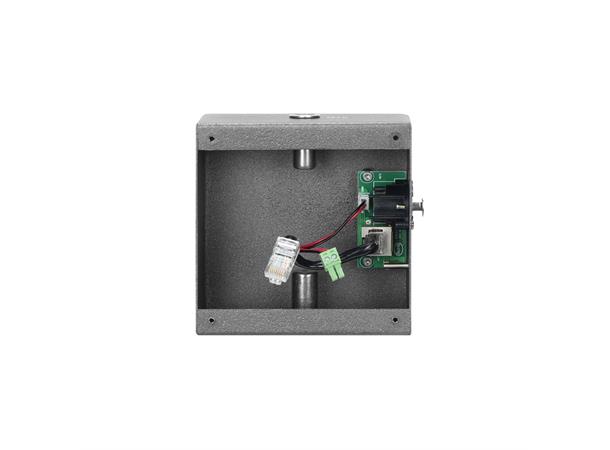

Standalone (Backbox included)
Truss-mount (M10 + M12 mounting hole)

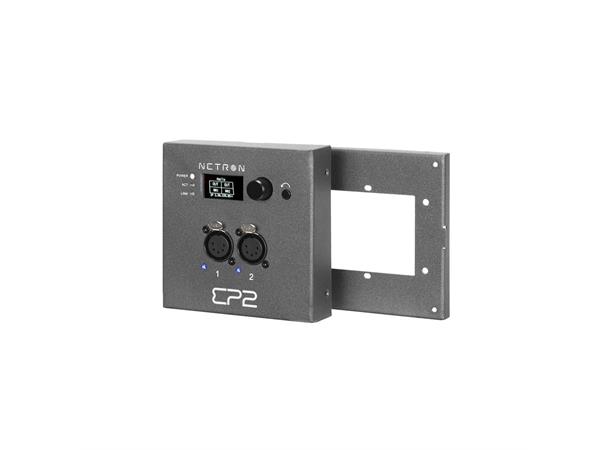

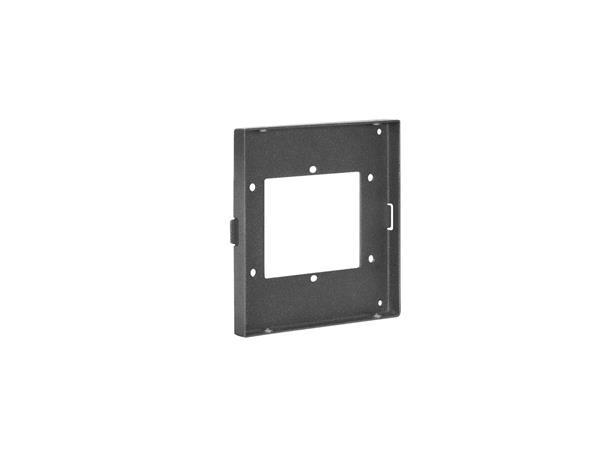

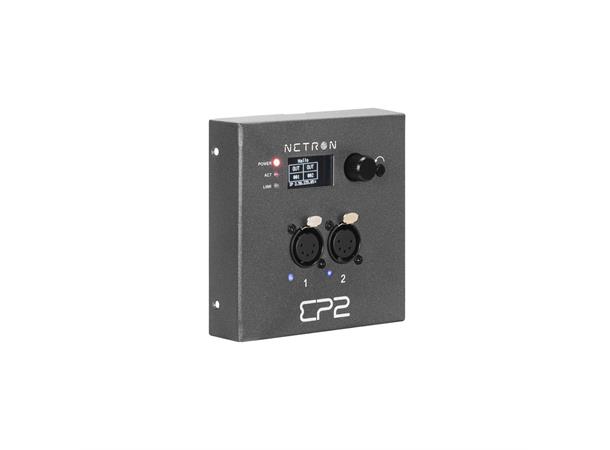

In or On-wall 2-Gang (US) or 50mm round (EU)

CONNECTIONS

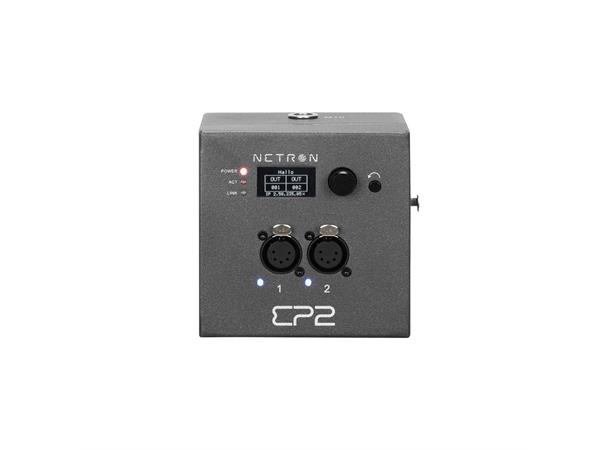

Front

(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output

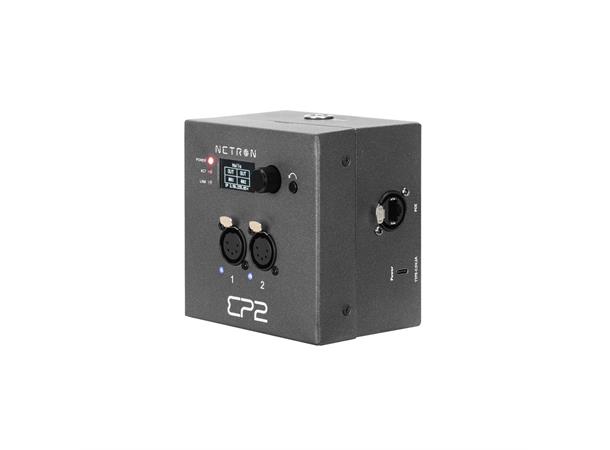

Side

(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)

PHYSICAL

Length: 117.6mm (4.6 in.)
Width: 114.0mm (4.5 in.)
Height: 89.1mm (3.5 in.)
Weight: 0.8kg (1.76lbs.)

ELECTRICAL

USB-C 5V
POE 802.3af, 2.8W
