FEATURES

RDM, ArtNet and sACN support
Factory and user presets for plug and play setup
POE or USB-C powered
1.3” OLED Display with rotary knob
Remote configuration via internal webpage
Powder-coated compact metal housing
In-wall, Truss and Standalone mounting
Unlocks ONYX NOVA 4-Universe License

SPECIFICATIONS

MOUNTING

Standalone (backbox included)
Truss-mount (M10 + M12 mounting hole)
In-Wall 1-Gang

CONNECTIONS

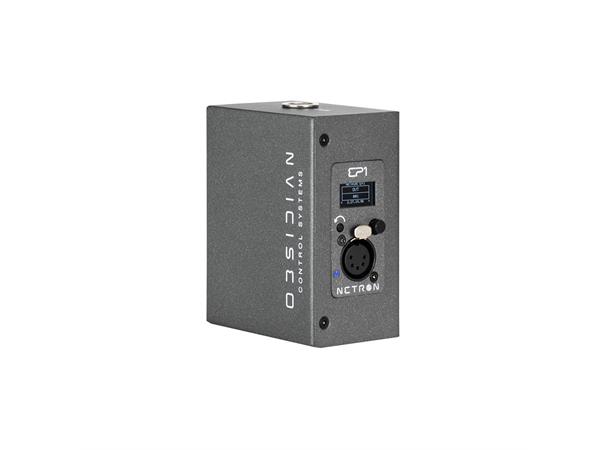

FRONT

(1) 5pin DMX/RDM optically isolated port
Bidirectional for DMX In and Output

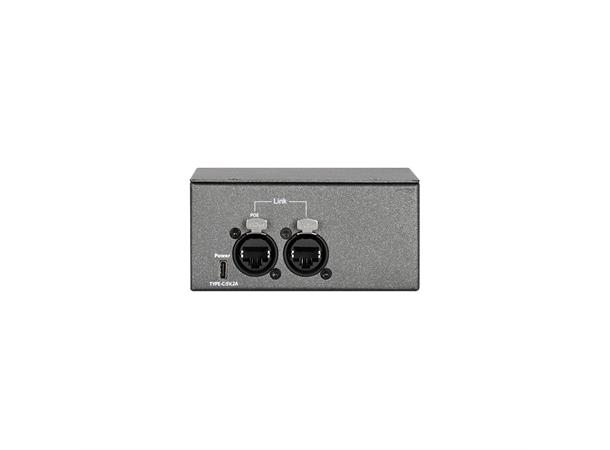

Side

(2) Locking RJ45 Gigabit Ethernet (1xPOE)
USB-C power option (5V, 2A)

PHYSICAL

Standalone
Length: 3.5 in. (90mm)
Width: 2.2 in. (55mm)
Height: 4.5 in. (114mm)
Weight: lbs. (kg)

1-Gang
Length: 2.3 in. (60mm)
Width: 1.7 in. (43.7mm)
Height: 4.3 in. (108.6mm)
Weight: bs. (kg)

ELECTRICAL

USB-C 5V
POE 802.3af, 2.8W
