The LX-series is split in three different sizes to scale every type of show or venue and provide the operator and lighting designer a clean ergonomic work environment where everything is only a push of a button away.

With the Clarity software you can easily control every type of light, like PAR cans, LEDs or moving lights, colour scrollers, LED matrix walls and even Media Servers using an intuitive interface.

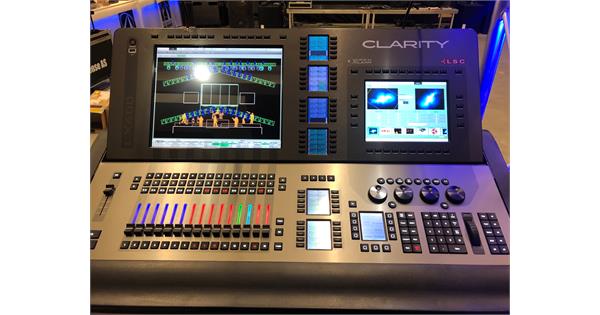

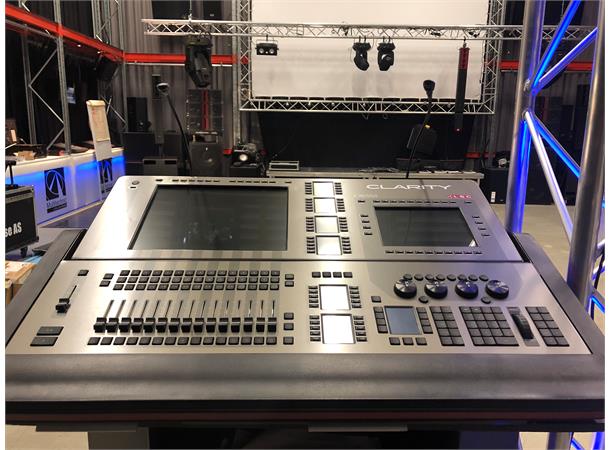

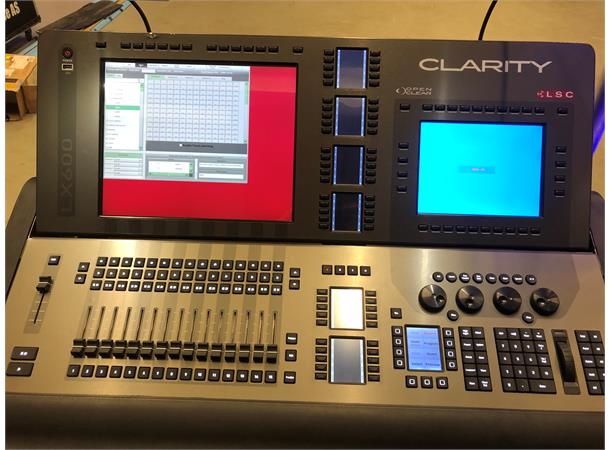

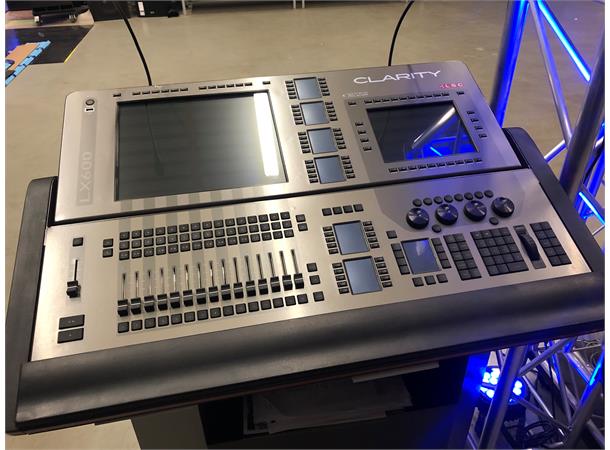

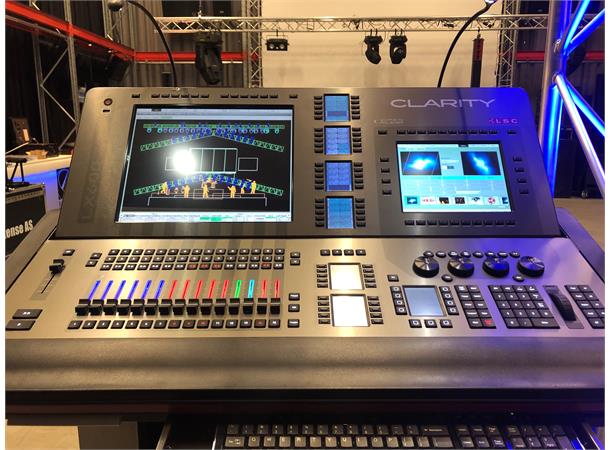

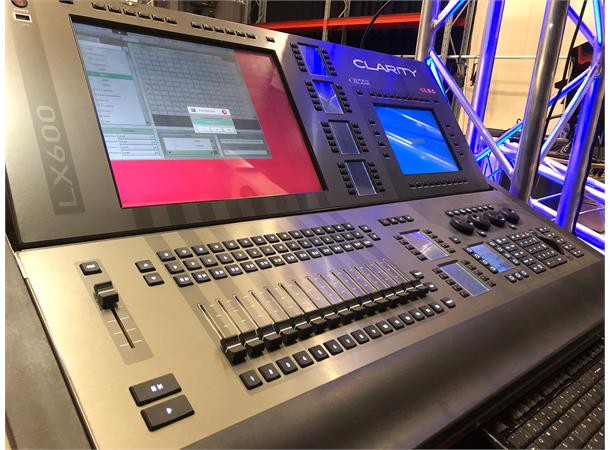

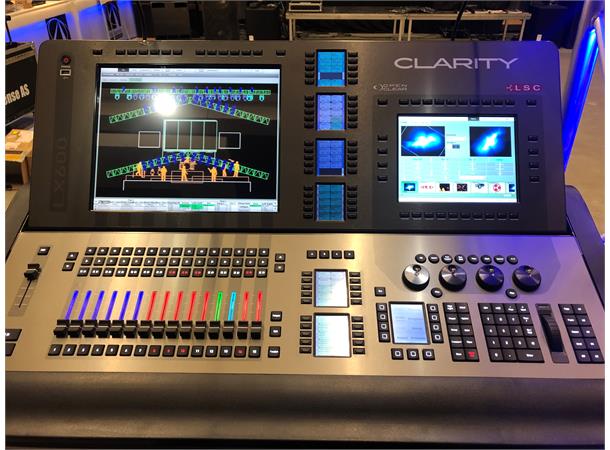

The LX600 is the middle of the LX range and will fit any size of a good show.

Features:

• Runs on Clarity software
• Drag and drop patching with intelligent fixture cloning
• Rig view in 2D simulation and easy fixture selection
• Multiple programmer with independent unlimited Undo/Redo function
• Media Server Content Integration via Thumbnails
• LED pixel mapping with picture and video playback
• Full Dynamic Editor and Effects Engine with smooth crossfading of effects
• Freesets (Presets, but independent of fixture type and quantity)
• Time Presets and Live Time Busking interface
• Unlimited Groups, Presets, Freesets, Cues and Chases
• Audio playback and timecode synchronisation
• Full tracking cuelists with Macro scripts and Undo/Redo of cue record/delete
• Unique Performance window live interface

Technical Facts:

• 1 pcs. 17" touch screen mounted on a pivoting panel
• 1 pcs. Parameter Control UI module comprising 10.4" touch screen, 20 feature buttons
• 15 pcs. 60mm Motorised RGB faders with Select/Go/Pause/Back buttons
• 99 pages split into two groups, Split position selectable
• Group/Palette/Preset/Cue buttons, 4 pages of 60 buttons, each with LCD touch screen for labelling and advanced control
• 4 push/turn encoders with 10 modifier buttons
• Full Numeric Keypad
• 2 pcs. 10 button banks
• Intensity Wheel
• 8 KeyControl buttons with full colour LCD labelling
• Any pair of Faders can be assigned into AB Mode
• Motorised Grand Master with DBO
• Slide Out Alphanumeric Keyboard and mouse pad
• 2 external Display via DVI
• 4 local DMX512 Outputs
• 8,000 Channels, expandable
• DMX-512/A, RDM, Art-Net, sACN
• Midi In/Out/Thru, SMPTE LTC input, Stereo Audio In and Out on balanced XLR
• Dual GB Ethernet ports
• 160GB shock protected disc storage system
