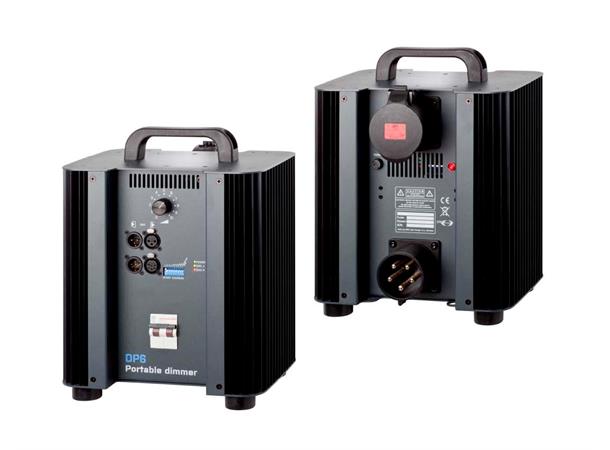

DP6
1-Channel 6kW Studio Dimmer
The DP6 studio dimmer is designed to fulfil all the requirements of most lighting applications – mainly in TV or special venues, where single channel dimming by various controlling ways is needed. DP6 is equipped with 400us rise-time choke that guarantees very low lamp noise.
Another benefit of the DP6 is an option to use the W-DMX inside, which allows controlling the device without a DMX cable. Additionally, the DMX OUT connector serves as a source of the DMX signal for any other DMX equipment or colour changer.

Power supply: AC230V / 40-65Hz, single phase
Operating temperature: -20 °C to +40 °C
Housing: Aluminium; gray powder coating
Dimensions & Weight: 270 x 220 x 360mm, 9.7kg
Warranty: 2 years

DP6 features:
- Convectional cooling without fan - WDMX / DMX / Fader control
- Power output: 1x 26A / 6W
- Main switch: 1x D32A
- Studio Rise-time: 400us
- DMX address selector
- LTP function fader/DMX
- DMX input with true output
- W-DMX with DMX output function - Phase-angle control SSR
- Double over-heat protection
- Variable input/output connectors - Type of connector: CEE32A/3p
