Application
|
Cat.7a
|
|
AWG (network)
|
23
|
|
AWG (video)
|
18
|
|
BPVo-Euroclass
|
Fca
|
|
Capacity wire/electic screen at 1 ft. (video) [pF]
|
16,1544
|
|
Capacity wire/electic screen at 1m (video) [pF]
|
53
|
|
Colour
|
black
|
|
Conductor insulation Ø (video) [mm]
|
4,8
|
|
Construction
|
[2x(02YSCCH1.2L/4.8)+(S/FTP4x2xAWG23/7)]Y
|
|
Construction (network)
|
(S/FTP4x2xAWG23/7)
|
|
Construction (video)
|
2x(02YCCH1.2L/4.8)
|
|
Copper strand Ø (network) [mm]
|
0,22
|
|
Copper strand Ø (video) [mm]
|
0,4
|
|
Copper strands (network)
|
7
|
|
Copper strands (video)
|
7
|
|
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
6,6751
|
|
Damping at 1000 MHz (100m & 20° C) [dB]
|
21,9
|
|
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
8,2906
|
|
Damping at 1485 MHz (100m & 20° C) [dB]
|
27,2
|
|
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
9,1135
|
|
Damping at 1750 MHz (100m & 20° C) [dB]
|
29,9
|
|
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
2,8651
|
|
Damping at 200 MHz (100m & 20° C) [dB]
|
9,4
|
|
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
10,2108
|
|
Damping at 2150 MHz (100m & 20° C) [dB]
|
33,5
|
|
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
12,4358
|
|
Damping at 3000 MHz (100m & 20° C) [dB]
|
40,8
|
|
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
4,4806
|
|
Damping at 470 MHz (100m & 20° C) [dB]
|
14,7
|
|
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB]
|
6,2179
|
|
Damping at 862 MHz (100m & 20° C) [dB]
|
20,4
|
|
Farge
|
Sort
|
|
Fire load per m [kWh]
|
1,52
|
|
Impedance (network) [Ohm]
|
100
|
|
Impedance (video) [Ohm]
|
75
|
|
Inner conductor (network)
|
2
|
|
Inner conductor (network) [mm²]
|
0,26
|
|
Inner conductor (video)
|
2
|
|
Inner conductor (video) [mm²]
|
0,88
|
|
Inner conductor Ø (video) [mm]
|
1,06
|
|
Jacket material
|
S-PVC flame-retardant
|
|
Jacket material (network)
|
PUR
|
|
Jacket material (video)
|
PUR
|
|
Jacket Ø (network) [mm]
|
8,5
|
|
Jacket Ø (video) [mm]
|
7,1
|
|
Jacket Ø [mm]
|
20,4
|
|
Materiale
|
PVC
|
|
Max. transmission distance (12G)
|
35 m
|
|
Max. transmission distance (3G)
|
150 m
|
|
Max. transmission distance (6G)
|
70 m
|
|

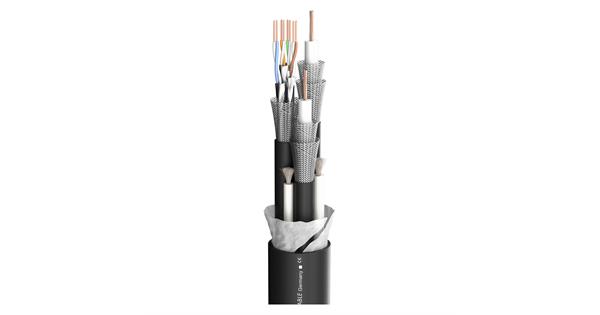

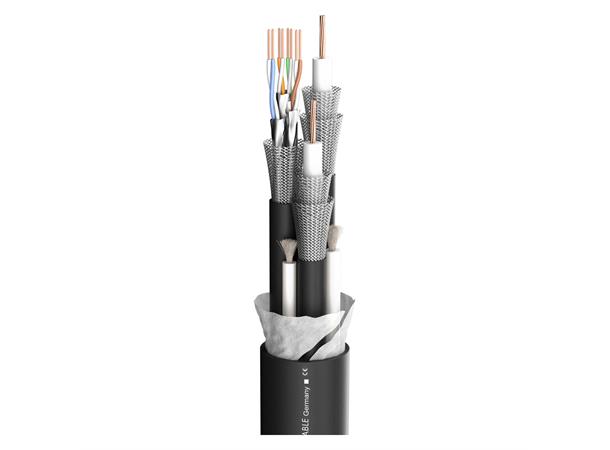

Name
|
TRANSIT MC 2001 HD
|
|
Number of Channels (network)
|
4
|
|
Number of Channels (video)
|
2
|
|
Packing
|
bulk stock
|
|
Shielding (network)
|
Tin-plated Cu braid + AL/PT foil per wire pair
|
|
Shielding (video)
|
2 x Copper braiding tinned
|
|
Shielding factor [%]
|
100
|
|
Temperature max. [°C]
|
70
|
|
Temperature min. [°C]
|
-20
|
|
Weight per 1 m [g]
|
455
|
|
Wire insulation material (video)
|
Foam/Skin-PE
|
