Hybrid Multicore Monolith 10,00m Link - 5pin/PowerCon Neutrik

Hybrid Multicore Monolith 10,00m

Link - 5pin/PowerCon Neutrik

Varenr: MHDW-M01/00-1000
2 102,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
-+
9 på lager
BeskrivelseTeknisk infoSupport
Beskrivelse

DMX + Power Multipair Looms

for the simple linking of devices which require both a DMX signal and 230 V mains
voltage (e.g. DMX fog machines, moving lights etc.). We fit our digital DMX512 multipair combi cable SC-MONOLITH 1 with a MENNEKES Schuko plug or powerCON® connector resp. and a NEUTRIK®3-pole or 5-pole XLR connector – and on the other side with a MENNEKES Schuko socket, IEC mains socket or NAC3FCB powerCON® resp. and a 3-pole or 5-pole XLR connector.
Our DMX cables have very low capacitive values and are therefore also an excellent choice for the audio or AES/EBU 110 Ω transmission.
CAUTION!
SOMMER CABLE will not assume any liability for personal and property damage which may occur due to the negligence of the generally applicable technical rules by the customer. The regulations of the DIN VDE 0100 parts 410, 430 ff. as well as the DIN VDE 0701, DIN VDE 0702 must be observed.

Attention !!!
The German safety plug we use (type EF 7/7) is compatible with the power outlets in France and Belgium. [/ B]

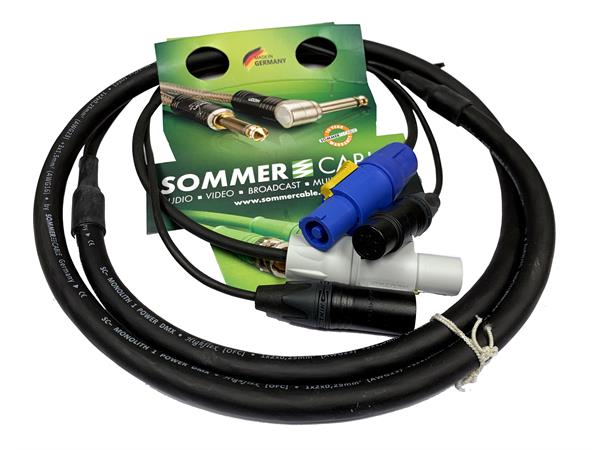

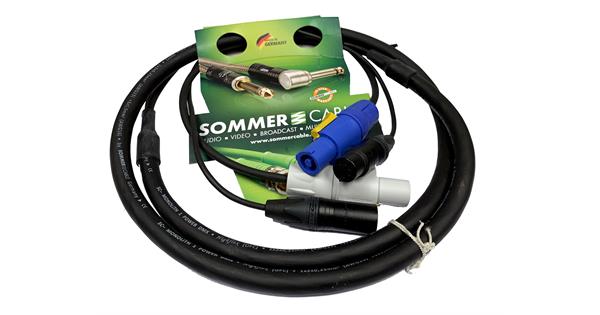

Configuration:
5.00 m SC-Monolith 1; power: 3 x 1,50 mm²; DMX: 2 x 0,25 mm²; PVC Ø 13,00 mm; black (500-0051-1)

1 x NEUTRIK powerCON, 3-pole , plastic-, screw-type-female connector, silver plated contact(s), straight, grey (NAC3FCB)
1 x NEUTRIK XLR, 5-pol , metal-, Soldering-male connector, silver plated contact(s), straight, chrome-plated (NC5MXX-BAG)

1 x NEUTRIK powerCON, 3-pole , plastic-, screw-type-female connector, silver plated contact(s), straight, blue (NAC3FCA)
1 x NEUTRIK XLR, 5-pol , metal-, Soldering-female connector, silver plated contact(s), straight, chrome-plated (NC5FXX-BAG)

1 x Cardboard packaging for blister hooks, Design Sommer cable
Teknisk info

Produktinformasjon

Application AES / EBU, DMX & Power Looms
Farge Sort
Inner conductor 2
Lengde 10,00m
