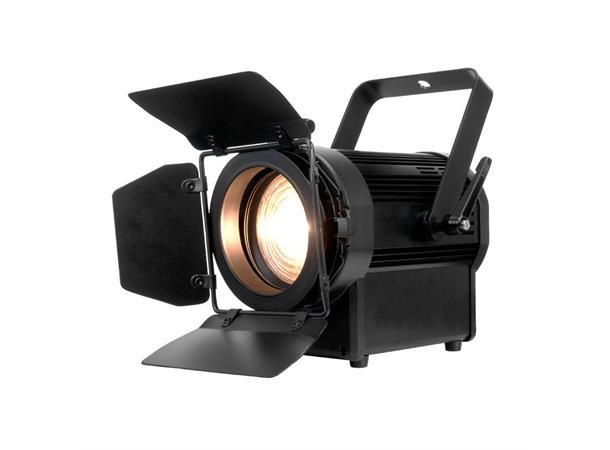

Part of the Encore stage lighting series, the Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 8 to 50 degrees.

The Encore FR50Z has a 4-button LCD operational menu, 3-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another. Specifications:

Source

• Light Source: 1 WW COB-LED

• Individual LED wattage : 50W

• Average LED lifetime : approximately 50,000 hrs.

• Color Temperature: 3000K

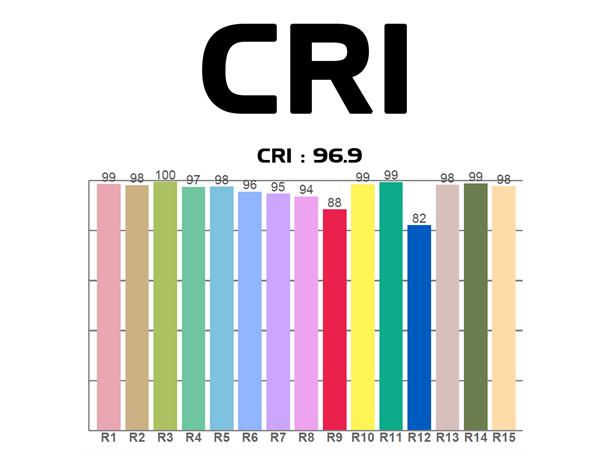

• CRI: 96.9

Optics

• Adjustable Beam Angle: 8-50 degrees

• 6-inch/150mm Fresnel Lens

Control

• 2 operational Modes : Manual WW Dimmer Mode and DMX Control

• 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel

• RDM compatible

• 16bit Electronic Dimming: 0 - 100%

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.8

• LED pulse and strobe effect

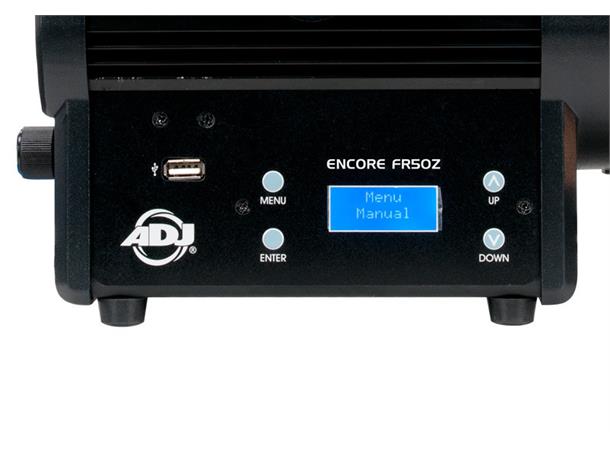

• 4-button, DMX digital display on rear panel

Colors

• Warm White 3000K

Construction

• Robust extruded aluminium housing

• Manual Zoom Knob

• Barndoors included

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 50W

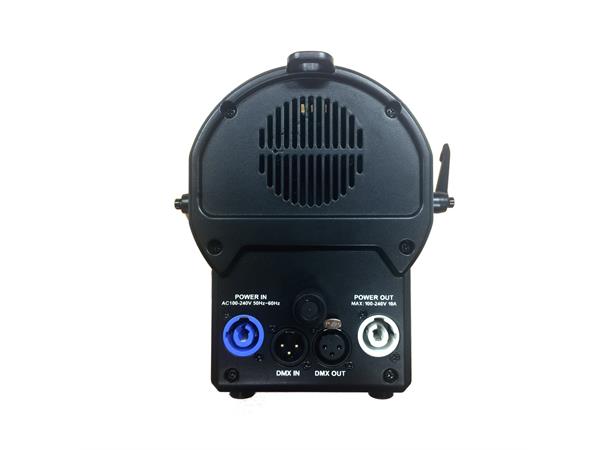

Connections

• 3-pin Locking DMX In/Out connections

• Locking Power In/Out connections

• USB port for Firmware Update

Dimensions & Weight

• Dimensions (LxWxH):

Without Barndoors: 232.8 x 238.05 x 298.25mm

With Barndoors: 339.8 x 238.05 x 298.25mm

• Weight:

Without Barndoors: 3,8 kg.

With Barndoors: 4,3 kg
